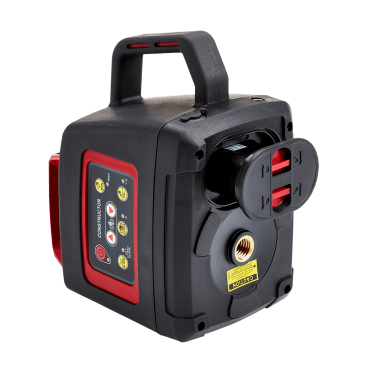

Available in the red or green beam version, the Datum Constructor provides maximum flexibility via its automatic horizontal, vertical and plumb beam laser levelling capabilities.
With its fast self-levelling and simple one button set up, the Constructor Laser is designed for both exterior and interior applications – from humble DIY beginners to adept surveying professionals.
This electronically controlled laser has several function options such as rotating, spot and scanning beam and is loaded with features including an out-of-level warning indicator to show if there are any disturbances to the laser, a tough IP54 rating, which ensures that the laser is protected from dust and water spray from any direction and a remote control for easy use when the laser is out of reach.
Use the Constructor for up to 40 hours with the Ni-MH battery pack, and expect an increase in productivity and efficiency while on site.
Accompanied with the Constructor Laser is the Datum LS-8 Laser Detector which comes housed in a protective rubberised casing for extra durability, has a dual screen LCD display for front and back beam indication and comes with a built-in rechargeable Li-ion battery pack.
The Datum Constructor Laser Level kit comes complete with the Datum Constructor Green Beam Laser, the Datum LS-8 Laser Detector and clamp, ceiling target, rechargeable battery, charger, wall mount and remote control.
The Datum Constructor Laser Level carries a 2 Year RTB Warranty.
Includes Datum Tripod and Staff in the sale price.
| Horizontal Accuracy | ±20" |
| Vertical Accuracy | ±30" |
| Plumb Accuracy | ±30" |
| Laser - Horizontal Spec | 650nm Class 2M |
| Laser - Plum Down Spec | 650nm Class 2M |
| Rotation Speed | 0 /300/600 |
| Working Range | 400m diameter |
| Compensator Range | ±5° |
| Slope Match Range | ±8.7% |
| Remote Control Range | Up to 30m |
| Scan Range | 10°/ 30°/ 60° |
| IPX Rating | IP54 |
| Operating Temperatures | 0-40 °C |
| Battery - Rechargeable | NI-MH |
| Battery Life | Up to 40 hours |
| Alkaline Battery Use | No |

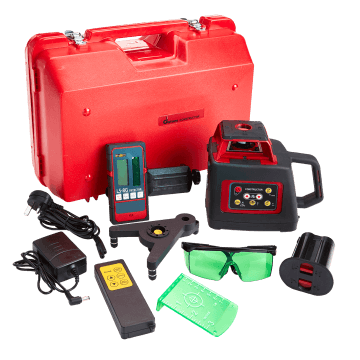

The Datum Green Beam Constructor kit contains:
- Constructor Green Beam Laser
- Datum LS8 Green Beam Detector
- Ceiling Target
- Rechargeable Battery
- Charger
- Wall Mount
- Remote Control
- Protective Carry Case
- Datum LS8 Detector Clamp
- Green Laser Enhancement Glasses
- Green beam lasers remain at the top of buyers preferences, compared to the red laser. The colour green is closer to the centre of the visible spectrum thus making it up to 400% more visible to the naked human eye therefore perfect for interior jobs such as suspended ceilings, curtain walling, partitioning etc.
