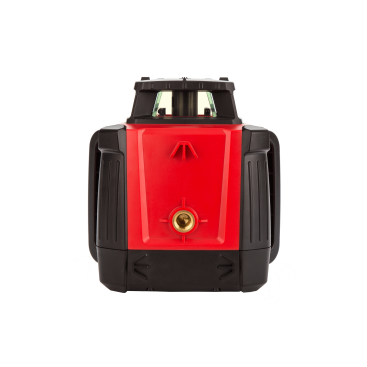

The new NE-1L Laser Level is our most advanced electronic laser level in the Datum laser range, capable of self-levelling in either horizontal, vertical or plumb, making the NE-1L one of the easiest on the market to use.
Designed with the user and simplicity in mind, this laser’s internal electronics makes light work of the most complex tasks, with the press of one button the laser levels in both X and Y axis, fast and efficiently and is ready to work in under 10 seconds.
Fitted with the latest red diode technology the NE-1L Laser Level displays an incredibly sharp, bright, red laser line, required when using for indoor applications such as suspended ceilings, curtain and dry walling, partitioning and flooring applications.
With an accurate and pin sharp 90° reference beam to the vertical line, the NE-1L is ideal for corner and 90° setting out applications, with the laser in manual mode the NE-1L can simply and quickly set out slopes for any application. Slope matching ensures easy grade setting, using the arrows on the keyboard or remote control, the user can instantly match the detector’s elevation thus setting out your chosen single slope Datum line to match that of the working environment.
Unlike pendulum type compensators, the NE-1L Laser Level has no need for levelling bubbles as the electronic self-levelling mechanism offers a far more stable laser even when job sites are subject to conditions of substantial vibration. One simple press of the tilt button and the laser will automatically stop rotating to warn the user that the laser has been knocked or moved.
With IPX66 protection the NE-1L is total dust ingress protected and is also protected from high pressure water jets from any direction, allowing the user to continue working in adverse weather conditions or environmental conditions.
The Datum NE-1L carries a 3 Year RTB Warranty.
Laser Beams | Horizontal, Vertical & Plumb Up |
Horizontal Beam Accuracy | ±1.5mm / 30m |
Vertical Beam Accuracy | ±3mm / 30m |
Vertical Plump Beam Accuracy | ±3mm / 30m |
Manual Slope Range | ±10% |
Scan Fan Range | 15º, 30º & 60º |
Working Range | 300m With Detector |
Rotation Speeds | 600 / 300 / 150 / 0 rpm |
Laser Class | Class II |
Waterproofing | IP66 |
Operating Time | 50 Hours |
Charging Time | 8 Hours |
Power Supply | Rechargeable Li-lon Battery Pack |
Bluetooth Control Enabled | Smart Tool App for both IOS and Android Systems |
Fixing Thread | 5 / 8" Screw Thread |
Warranty | 3 Year RTB Warranty (Instrument Registration Required) |
The NE-1L Laser Level kit includes:
- Datum NE-1L Laser Level
- Battery Charging Unit 240v
- Adjustable Wall Mount
- Detector Clamp
- User Manual
- Dry Cell Battery Tray
- Li-ion Battery Pack
- Magnetic Ceiling Target
- DLD300 Digital Detector
- Remote Control Unit
- Carry Case
- Tripod
- Staff
- The Datum Constructor (https://www.datumproducts.com/product/datum-constructor-laser-level-red-beam/) is the successor to the Datum Quattro Laser. Our Datum DLDC Detector Clamp (https://www.datumproducts.com/product/datum-laser-detector-clamp/) provides secure positioning for the Datum LS-6 and Datum LS-8 Laser Detectors.
